Pixera Digital Macro Imaging System

16x Power Zoom Remote Control Camera MC500D-16PZ

3.3x Zoom Small Macro Imaging System MC500D-3.3MZ

Resolution 2592x1944, 2048x1536, 1920x1080
Image Sensor 0 Defect 1/2.5" Enhanced Color CMOS, 5 megapixel with RGB color filters
Pixel Size 2.2 microns (H) x 2.2 microns (V)
Image Processing Engine Proprietary, software image processing
Image Processing Speed 1-5sec including the processing time to display
Maximum Sensitivity 0.1lux
Dynamic Range 67dB
Long Integration Exposure Up to 3 sec
Color Depth 24-bit RGB
Sensitivity Settings ISO 50/100/200/400 equivalent
White Balance Automatic, One-Push, Manual
Exposure Automatic, Manual
Shutter Speed 58 μsec. to 3000 msec.
Viewfinder Up to 20fps (frames per second) at 1920x1080 pixels
File Sizes (uncompressed)

24-bit

  • 6.2MB @ 1920x1080
  • 9.4MB @ 2048x1536
  • 15.1MB @2592x1944
File Formats RAW, BMP, JPEG, PNG
Bundled Software

iWorks Lite

Camera Control Measurement Tools Annotations
Image Stitching Multi-Focus Time Lapse
Computer Interface USB 2.0
Power via USB cable 0.8W (5V, 160mA)
Operating Temperature 0°C - 50°C, Humidity: 30%-90% (No dew condition)
System Requirements

Windows

Operating Systems: Windows XP / 7 / 8
Processing Speed: 1GHz or faster
Memory (RAM): 512MB or more
Hard Disk Space 512MB of free space or more

MacOS

Under Development
Options
  • ProD-FS: Foot Switch for hand free image capture
  • 10 ft (3m) Extension Cable

16x Power Zoom Remote Control Camera MC600ES-16PZ

3.3x Zoom Small Macro Imaging System MC600ES-3.3MZ

Resolution 2776x2074 (DiRactor), 1392x1040, 640x480
Image Sensor 0 Defect 1/2" IT-CCD, 1.5 megapixel with RGB color filters
Pixel Size 4.65 microns (H) x 4.65 microns (V)
Image Processing Engine Pixera Proprietary, 100% software image processing
Image Processing Speed 5-20sec including the processing time to display
Maximum Sensitivity 0.05lux
Dynamic Range 60dB
S/N Ratio 62dB
Long Integration Exposure Up to 64 minutes
Color Depth 24 or 48-bit RGB
Sensitivity Settings ISO 50/100/200/400 equivalent
White Balance Automatic, One-Push, Manual
Exposure Automatic, Manual
Shutter Speed 1/10000 sec. to 60 sec.
Viewfinder Up to 15fps (frames per second) at 640x480 pixels
File Sizes (uncompressed)

24-bit

  • 921KB @ 640x480
  • 4.34MB @ 1392x1040
  • 17.3MB @2776x2074

48-bit

  • 1.84MB @ 640x480
  • 8.67MB @ 1392x1040
  • 34.5MB @ 2776x2074
File Formats BMP, JPEG, TIFF, DIB, and FlashPix
Bundled Software

Pixera OrganStudio™ Software

Windows Pixera Viewfinder
Pixera Studio
Pixera TWAIN Viewfinder
MacOS Pixera Studio
Adobe® Photoshop® Plug-in
Computer Interface Pixera proprietary PCI interface card
Power 5.6W (5V, 1.12A)
Operating Temperature 5°C - 35°C, Humidity: 30%-90% (No dew condition)
System Requirements

Windows

Operating Systems: 95/98/Me/NT/2000/XP
Processing Speed: 300MHz or faster
Memory (RAM): 128MB or more
Hard Disk Space 100MB of free space or more

MacOS

Operating Systems: 9.0-9.2, OSX
Processing Speed: Blue/White G3 or later
Memory (RAM): 256MB or more
Hard Disk Space 100MB of free space or more
Options
  • Penguin/Pro-HS: Hand Switch for remote image capture
  • Penguin/Pro-FS: Foot Switch for hand free image capture
  • Penguin/Pro-CS: Camera Switch

Lens for 16x Power Zoom Remote Control Camera MC600ES-16PZ

Focal Length 7.5 ~ 120mm
Power Zoom 16x
Max Aperture Ratio 1:1.6
Max Image Format 6.4 x 4.8mm (ø8mm)
Operation
Iris Motorized, F1.6 ~ 560C
Focus Motorized, Preset, 1.5m ~ ∞
Zoom Motorized, Preset, 7.5 ~ 120mm
Object Dimension at Minimum Object Distance
7.5mm 129.2 x 95.5cm
120mm 8.4 x 6.3cm
Effective Lens Aperture
Front ø66.4mm
Rear ø13.5mm
Back Focal Length 14.00mm
Flange Back Length 17.526mm
Mount C-Mount
Filter Size M72 P=0.75mm
Weight 1090g
Operating Temperature -10°C ~ +50°C

Lens for 3.3x Manual Zoom Small Macro Imaging System MC600ES-3.3MZ

Zoom Ratio 3.3x (0.3x ~ 1.0x)
Max Aperture Ratio 1:4.5
Max Image Format 6.4 x 4.8mm (ø8mm)
Operation
Iris Manual, F4.5 ~ close
Focus Manual
Zoom Manual, 3.3x
Working Distance 89.9mm
Object Dimension at Working Distance
0.3x 21.4 x 16.1mm
1.0x 6.4 x 4.8mm
Effective Lens Aperture
Front ø15.5mm
Rear ø7.0mm
Distortion +0.02% (0.3x), -1.78% (1.0x)
Back Focal Length 20.4mm
Flange Back Length 17.526mm
Mount C-Mount
Filter Size M34 x 0.5mm
Weight 150g
Operating Temperature -20°C ~ +50°C

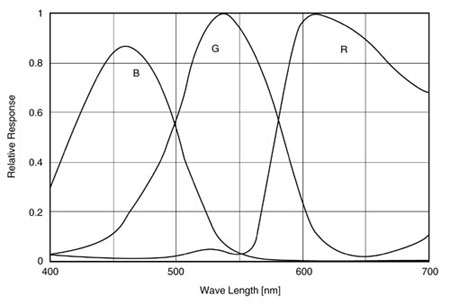

Spectral Sensitivity Characteristics

(Excludes lens characteristics and light source characteristics)

Spectral Sensitivity Chart
