Technical
Specifications
|
|
|
|
Resolutions
|
Pro300D: 2048 x 1536 (3.0MP)
Pro500D: 2592 x 1944 (5.0MP)
Pro1000D: 3664 x 2748 (10MP)
Pro1400D: 4384 x 3288 (14MP)
|
|
Sensor
|
0 Defect
1/2", 1/2.5", 1/2.3", 1/2.3" Enhanced Color CMOS Sensor with RGB color
filters
|
|
Pixel
size
|
3.2 x 3.2 microns, 2.2 x 2.2 microns,
1.67 x 1.67 microns, 1.4 x 1.4 microns
|
|
Dynamic
Range
|
61dB, 68dB, 65dB, 65dB
|
|
Color
Depth
|
10-bit ADC x RGB
|
|
White
Balance
|
Automatic,
One-Push, Manual
|
|
Exposure
|
Automatic,
Manual
|
|
Shutter
Speed
|
0.05 ms to 3,000 ms
|
|
Frame Rate
|
|
Pro300D:
|
11 fps @
2048 x 1536
|
|
|
16 fps @
1920 x 1080
|
|
|
32 fps
@1024 x 768
|
|
Pro500D:
|
9 fps @
2592 x 1944
|
|
|
13 fps @
2048 x 1536
|
|
|
20 fps
@1920 x 1080
|
|
Pro1000D:
|
4 fps @
3664 x 2748
|
|
|
9 fps @
2592 x 1944
|
|
|
18 fps
@1920 x 1080
|
|
Pro1400D:
|
12 fps @
4384 x 3288
|
|
|
32 fps @
2592 x 1944, ROI
|
|
|
28 fps
@2048 x 1536, BIN
|
|
|
38 fps
@1920 x 1080, BIN
|
|
|
71 fps
@1920 x 1080, ROI
|
|
|
102 fps
@1024 x 768
|
|
|
64 fps
@800 x 600, SUM
|
|
|
File
Formats
|
RAW, BMP, JPEG, PNG
|
|
Bundled
Software
|
|
iWorks Lite: Windows 7,8,&10 (32bit / 64bit)
|
|
|
Camera Control, Full Screen Display
|
|
|
Anotations, Measurement Tools
|
|
|
Image Stitching, Time Lapse
|
|
|
TWAIN and DirectShow Compatible
|
|
Mac OS
|
Under development
|
|
|
Computer
Interface
|
USB2.0 (Pro300D/500D/1000D),
USB3.0 (Pro1400D)
|
|
Power Consumption
|
0.65W(Pro300D),0.80W(Pro500D), 0.95W(Pro1000D), 2W(Pro1400D)
|
|
Operating
Temperature
|
0°C - 50°C, Humidity: 30%-90% (No dew condition)
|
|
System
Requirements
|
|
Windows OS:
|
|
|
Operating
Systems:
|
Windows 7,8,&10 (32bit / 64bit)
|
|
Processing
Speed:
|
1 GHz or
faster
|
|
Memory
RAM:
|
1 GB or
more
|
|
Hard disk
Space:
|
1 GB of free
space or more
|
|
|
Options
See details
>>
|
ProD-FS: Foot Switch for hand free image
capture
|
|

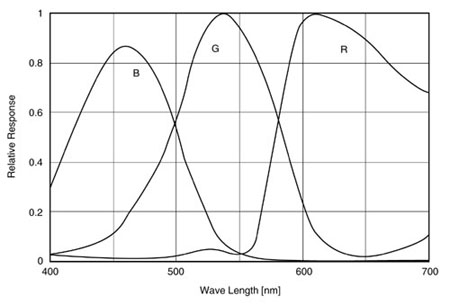

Spectral
Sensitivity Characteristics
(Excludes lens
characteristics and light source
characteristics)
|
|
