Pro300DM 3.0 MP
(32 fps at 1024 x 768)
Pro500DM 5.0 MP
(20 fps at 1920 x 1080)
Pro1000DM 10 MP
(18 fps at 1920 x 1080)
Pro1400DM 14 MP
(102 fps at 1024 x 768)
Excellent Sensitivity
Low- Noise and Low-Power
(0.65W - 2W)
Wide Dynamic Range
(61dB - 67dB)
High Speed USB2.0 or USB3.0
Windows 7,8,&10 (32 bit / 64 bit)
TWAIN and DirectShow Compatible
Measurement Tools, Image Stitching, Multi-Focus, Time Lapse, FL Merge
Multi-Camera Synchronous Function
|
|
|
|
Applications:
Fluorescence Imaging
Darkfield Transmitted/Reflected
Brightfield Transmitted/Reflected
Polarized Light
Phase Contrast
DIC/Nomarski Transmitted/Reflected
Hoffman Modulation
Gel Documentation
Material Science
|
Included:
Camera, 6ft (1.8m) USB Cable, Software (Windows 7,8,&10),
Users Manual, 1year Warranty, Free Driver Downloads,
Customer Support.
*Foot Switch is availabe as an option for a remote image capture.
See details about Foot Switch on the
options page.
Options:
See Options page
>>
|
|
|

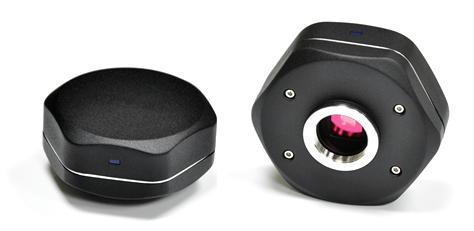

Pro300DM, Pro500DM, Pro1000DM, Pro1400DM
- Monochrome Digital Camera Systems-
Pixera Pro DM Series are high performance digital microscope cameras equipped with highly sensitive monochrome CMOS image sensors. Four models are available with 3M, 5M, 10M, and 14M pixels. All cameras include integrated image analysis software. Pro DM series microscope cameras are an excellent choice of fluorescence Imaging for scientific research.
All cameras will provide you with a very high image quality of 12-bit monochrome image and wide dynamic range, and when you need the absolute highest quality and resolution for archiving, digital zoom in and publishing, the Pro1000DM or Pro1400DM with more than 10 M pixels are your best choice. Pro1400DM has a high speed USB 3.0 interface which provides 12 frames per second at 4384 x 3288 resolution or 102 frames per second at 1024 x 768 resolution
|
|
|
|
