Pixera OrganStudio™

Camera Specifications

Resolution 2776x2074 (DiRactor), 1392x1040, 640x480
Image Sensor 0 Defect 1/2" IT-CCD, 1.5 megapixel with RGB color filters
Pixel Size 4.65 microns (H) x 4.65 microns (V)
Image Processing Engine Pixera Proprietary, 100% software image processing
Image Processing Speed 5-20sec including the processing time to display
Maximum Sensitivity 0.05lux
Dynamic Range 60dB
S/N Ratio 62dB
Long Integration Exposure Up to 64 minutes
Color Depth 24 or 48-bit RGB
Sensitivity Settings ISO 50/100/200/400 equivalent
White Balance Automatic, One-Push, Manual
Exposure Automatic, Manual
Shutter Speed 1/10000 sec. to 60 sec.
Viewfinder Up to 15fps (frames per second) at 640x480 pixels
File Sizes (uncompressed)


  • 921KB @ 640x480
  • 4.34MB @ 1392x1040
  • 17.3MB @2776x2074


  • 1.84MB @ 640x480
  • 8.67MB @ 1392x1040
  • 34.5MB @ 2776x2074
File Formats BMP, JPEG, TIFF, DIB, and FlashPix
Bundled Software

Pixera OrganStudio™ Software

Windows Pixera Viewfinder
Pixera Studio
Pixera TWAIN Viewfinder
MacOS Pixera Studio
Adobe® Photoshop® Plug-in
Computer Interface Pixera proprietary PCI interface card
Power 5.6W (5V, 1.12A)
Operating Temperature 5°C - 35°C, Humidity: 30%-90% (No dew condition)
System Requirements


Operating Systems: 95/98/Me/NT/2000/XP/Vista/7
Processing Speed: 300MHz or faster
Memory (RAM): 128MB or more
Hard Disk Space 100MB of free space or more


Operating Systems: 9.0-9.2, OSX
Processing Speed: Blue/White G3 or later
Memory (RAM): 256MB or more
Hard Disk Space 100MB of free space or more
  • Penguin/Pro-HS: Hand Switch for remote image capture
  • Penguin/Pro-FS: Foot Switch for hand free image capture
  • Penguin/Pro-CS: Camera Switch

Lens Specifications

Focal Length 7.5 ~ 120mm
Power Zoom 16x
Max Aperture Ratio 1:1.6
Max Image Format 6.4 x 4.8mm (ø8mm)
Iris Motorized, F1.6 ~ 560C
Focus Motorized, Preset, 1.5m ~ ∞
Zoom Motorized, Preset, 7.5 ~ 120mm
Object Dimension at Minimum Object Distance
7.5mm 129.2 x 95.5cm
120mm 8.4 x 6.3cm
Effective Lens Aperture
Front ø66.4mm
Rear ø13.5mm
Back Focal Length 14.00mm
Flange Back Length 17.526mm
Mount C-Mount
Filter Size M72 P=0.75mm
Weight 1090g
Operating Temperature -10°C ~ +50°C

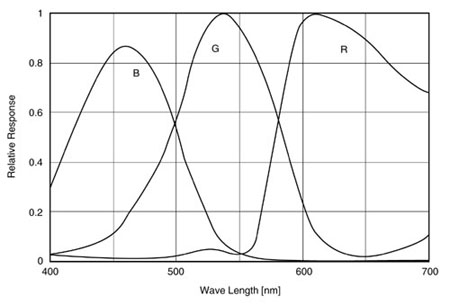

Spectral Sensitivity Characteristics

(Excludes lens characteristics and light source characteristics)

Spectral Sensitivity Chart
